Ancel DP500 Key Programming Tool OBD2 Car Instrument Cluster Adjustment Tool 11 Reset Automotive Diagnosis Scanner Vehicle Tools.

Type:

Key Programmer

Power:

12W

Certification:

CE

Applicable Models:

Most Of Cars

Place of Origin:

Guangdong, China

Brand Name:

Ancel

Model Number:

DP500

Warranty:

24 Months

Support Functions:

Key Programmer,EEPROM Chip Read

Special Features:

Instrument Cluster Adjustment Tools

Support Resets 1:

Oil Reset Service,ABS Bleeding,Gear Learning

Support Resets 2:

CVT Reset,Battery Match,EPB Adaptation

Support Resets 3:

Steering Angle Reset,DPF Regeneration,Injector Coding

Special Reset 4:

Suspension Matching

Update:

One Year Free Update

OBD2 Full Function:

DTC Read/Clear,Live Data

Feature:

WIFI Support

Item Weight:

3kg

• 1 - 4 Pieces

  $791.00

• 5 - 9 Pieces

  $761.00

• >=10 Pieces

  $741.00

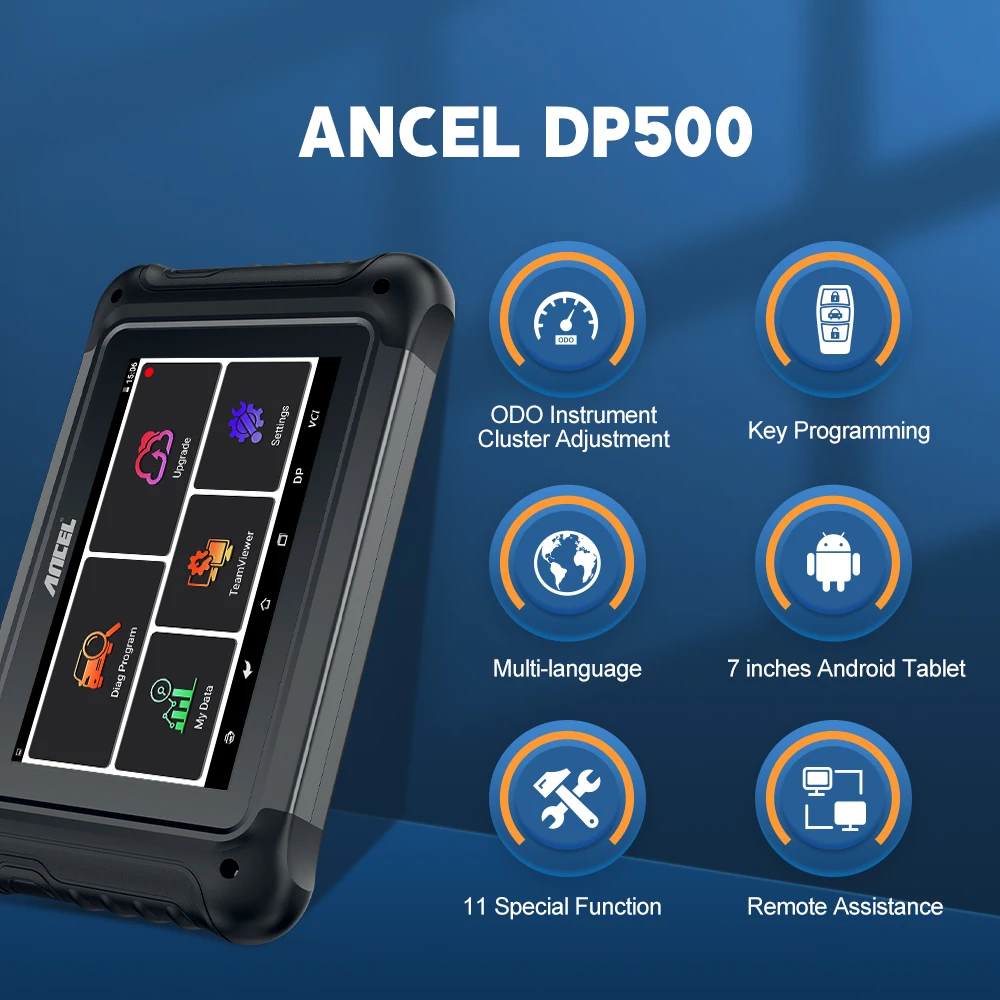

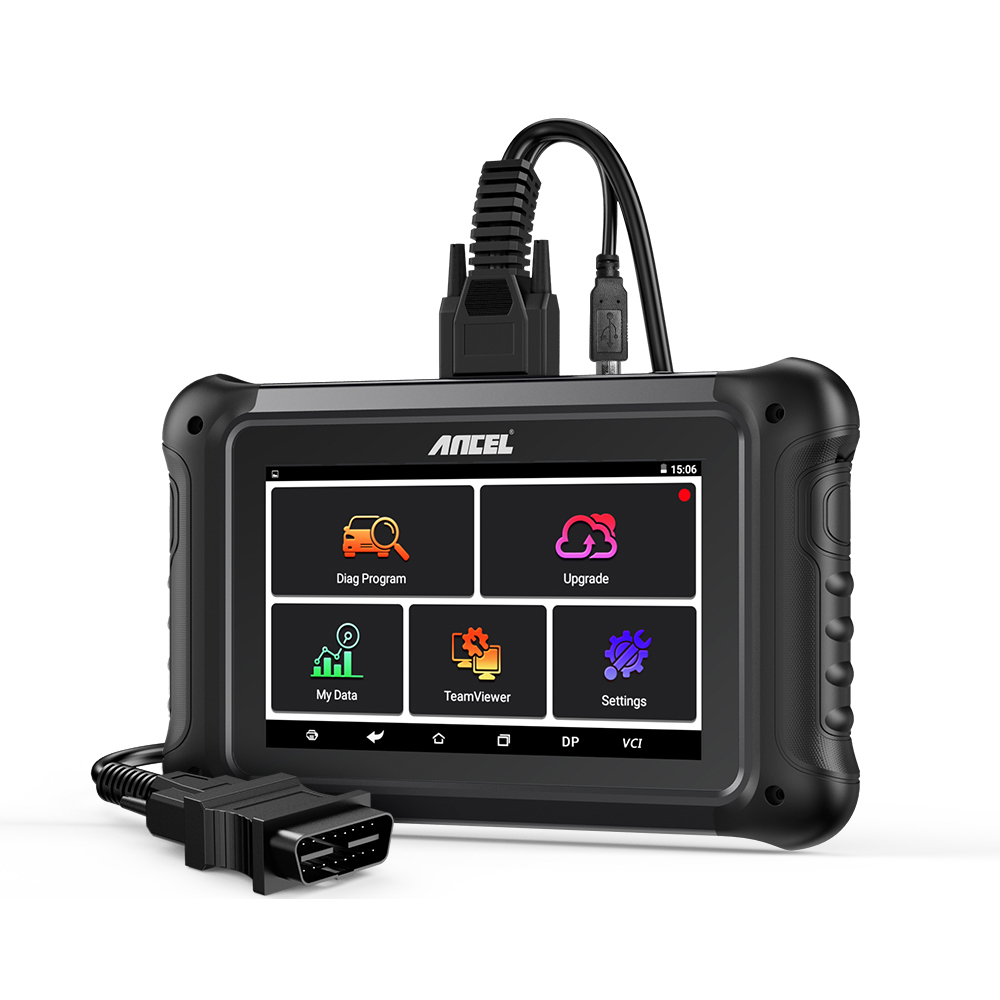

DP500 is a new Android-based vehicle trouble diagnostic device developed for internet applications. Contains key programming, Instrument Cluster Adjustment, oil/service reset and special functions like ABS bleed, gear learning,EPB, TPS, SRS reset etc; It covers wide range of vehicles, featured powerful function, and provides precise result.All-in-one machine structure, more convenient to use, full optimization hardware, running more stable, faster and smoother.

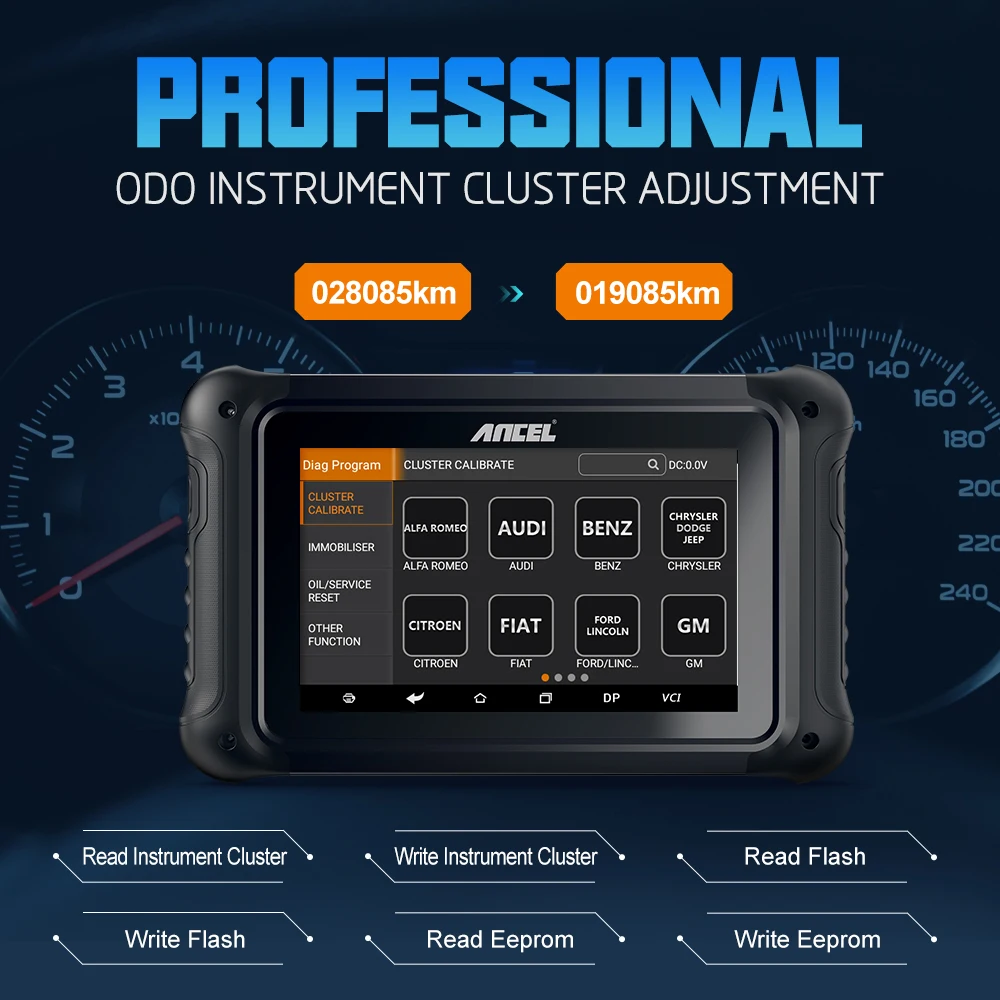

Professional Instrument Cluster Master: DP500

DP500 help you to solve problem easily. ODO Instrument Cluster Adjustment Read Instrument Cluster Write Instrument Cluster Read Flash Write Flash Read EEPROM Write EEPROM

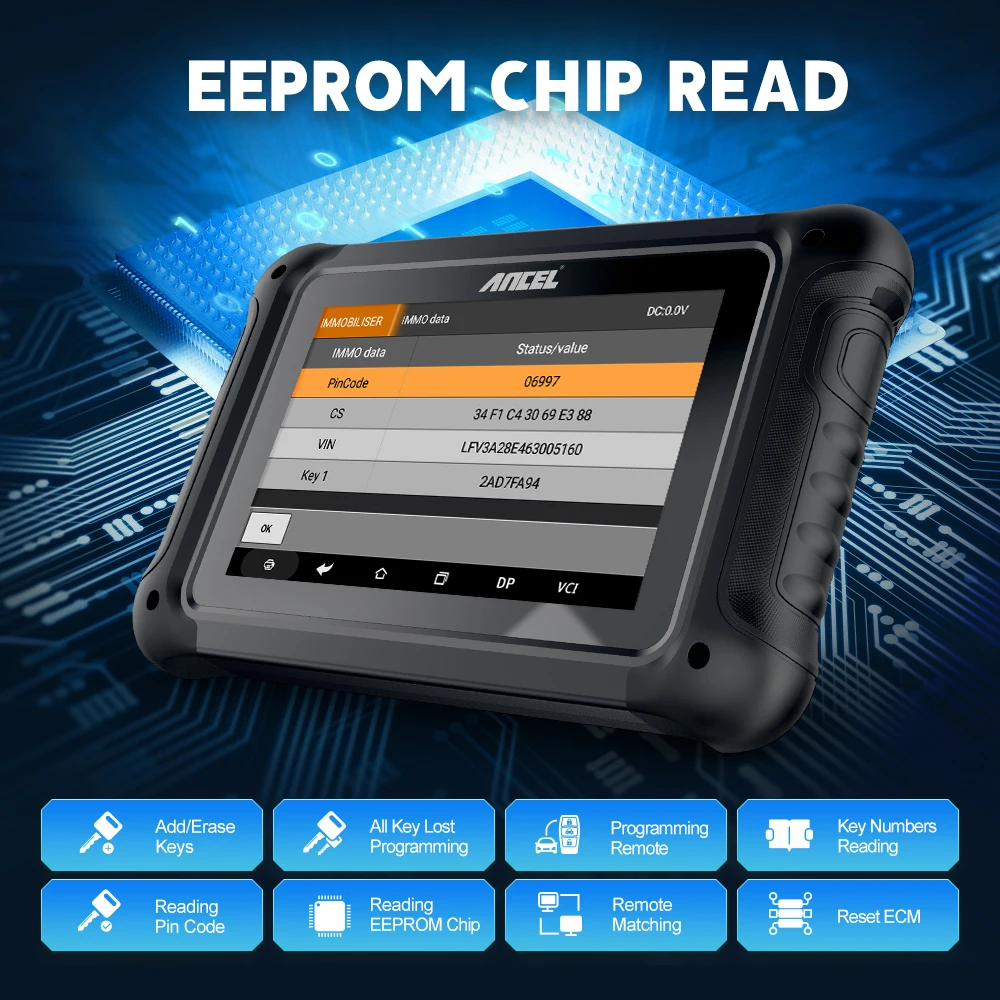

DP500 Support EEPROM Chip Read

Programming & Erase Keys
Programming Remote
Pincode Read
Key Numbers Read
EEPROM Chip Reading

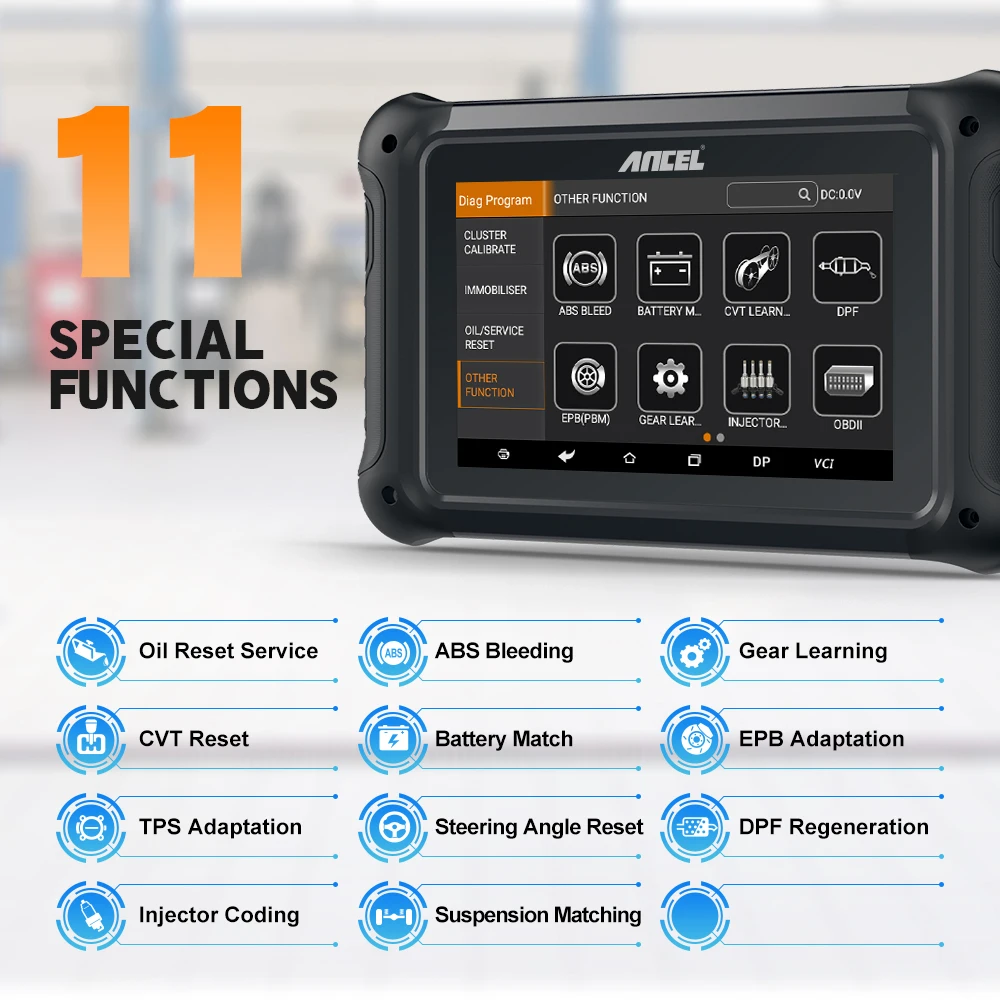

DP500 Support 11 Special Functions:

1.Oil Reset
The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the mileage or driving time to zero after the maintenance,so the maintenance light will go out and the system will start a new maintenance cycle.

2.ABS Bleeding
When the ABS contain air,the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.If
the ABS computer,ABS pump,brake master cylinder,brake cylinder,brake line,or brake fluid is replaced,the ABS bleeding function
must be performed.

3.Gear Learning
Crankshaft position sensor adaptive learning.

4.CVT Reset
This function is reset the adaptive shift

5.Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery,in which the original low battery fault information will be cleared and battery matching will be done.
Battery matching must be performed in the following cases:
a)Main battery is replaced.Battery matching must be performed to clear original low battery information and prevent the related control module from detecting false information.If the related control module detects false information,it will invalidate some electric auxiliary functios,such as automatic start&stop function,sunroof without one-key trigger function,power window without automatic function.
b)Battery monitoring sensor.Battery matching is performed to re-match the control module and motoring sensor to detect battery power usage more accurately,which can avoid an error message displaying on the instrument panel.

6.EPB Adaptation
Allows you to perform the service and maintenance of brake systems

7.TPS
This fuction allow for an idle relearn to be performed.

8.Steering Angle Reset
To reset the steering angle,first find the relative zero point position for the car to drive in straight line.Taking this position
as reference,the ECU can calculate the accurate angle for left and right steering.After replacing the steering angle position
sensor ,replacing steering mechanical parts(such as steering gearbox,steering column,end tie rod,steering knuckle),performing four-wheel alignment,or recovering car body,you must reset the steering angle.

9.DPF Regeneration
DPF Regeneration is used to clear PM(Particulate Matter)from the DPF filter through continuous combustion oxidation mode(such us high temperature heating conbustion,fuel additive or catalyst reduce PM ignition conbustion)to stabilize the filter perfornance.
DPF regeneration may be performed in the following cases:
a)The exhaust back pressure sensor is replaced.
b)The PM trap is removed or replaced
c)The fuel additive nozzle is removed or replaced
d)The cataytic oxidizer is removed or replaced.
e)The DPF regeneration MIL is on and maintenance is performed.
f)The DPF regeneration control module is replaced.

10.Injector Coding

11.Suspension Matching
This function can adjust the height of the body.When replacing the body height sensor in the air suspension system,or control module or when the vehicle level is incorrect,you need to perform this function to adjust the body height sensor for level calibration.

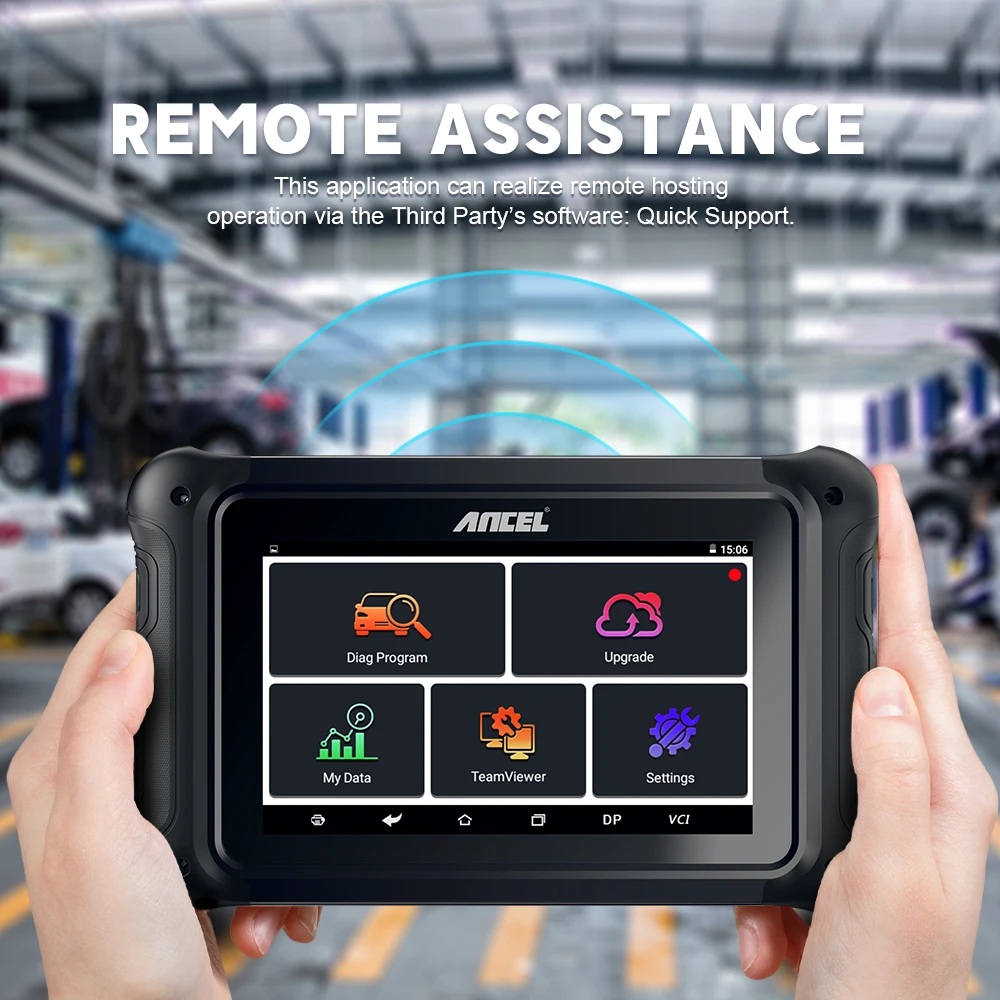

DP500 Support Remote Assistance:

This application can realize remote hosting operation via the Third Party's software: Quick Support

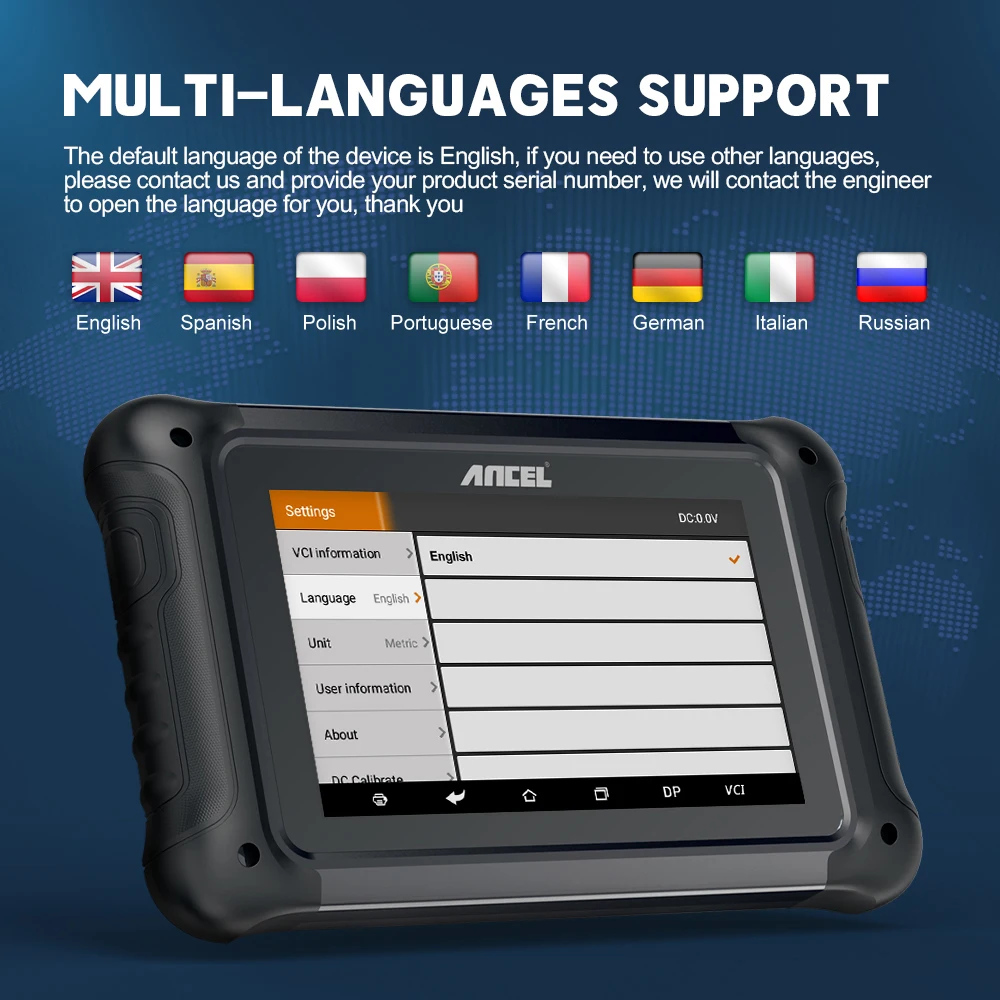

Support Multi-Languages

English,Spanish,Polish,Portuguese,French,German,Italian,Russian.

The default language of the device is English,

if you need to use other languages,

please contact us and provide your product serial number,

we will contact the engineer to open the language for you, thank you

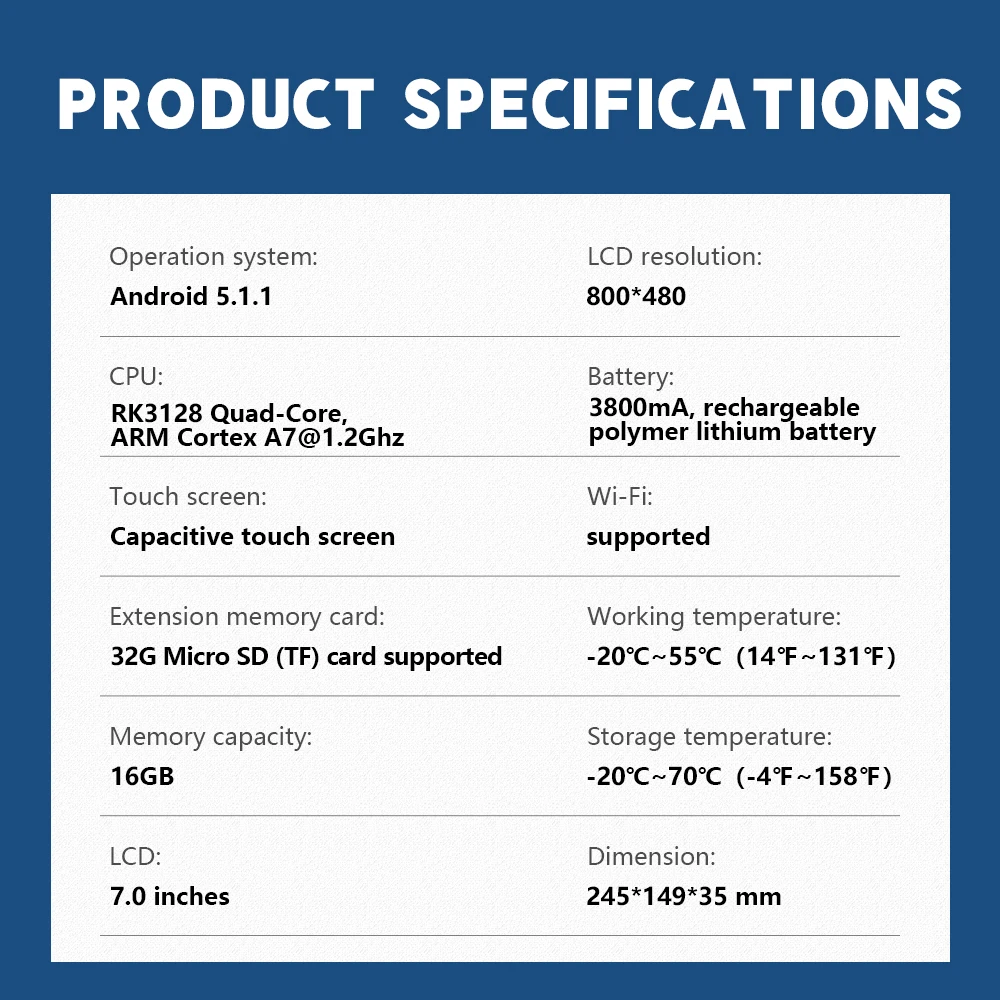

Product Specifications

Operation System: Android 5.1.1
CPU: RK3128 Quad-core, ARM Cortex A7@1.2Ghz
Battery: 3800mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD： 7 inch
LCD resolution: 800*480
Touch screen: capacitive touch screen
Wifi: supported
Working temperature: -20℃～55℃（14℉～131℉）
Storage temperature: -20℃～70℃（-4℉～158℉）
Weight: 850g

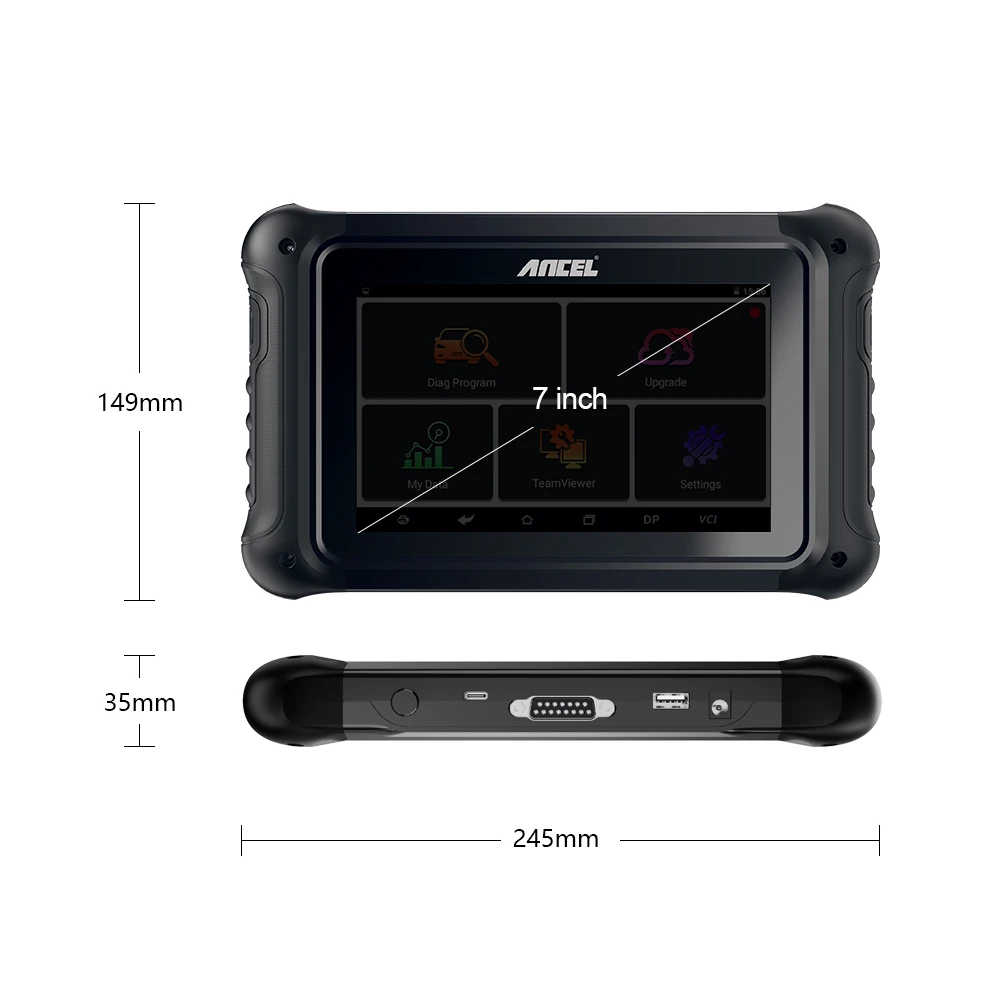

Dimension: 245*149*35mm

Specification

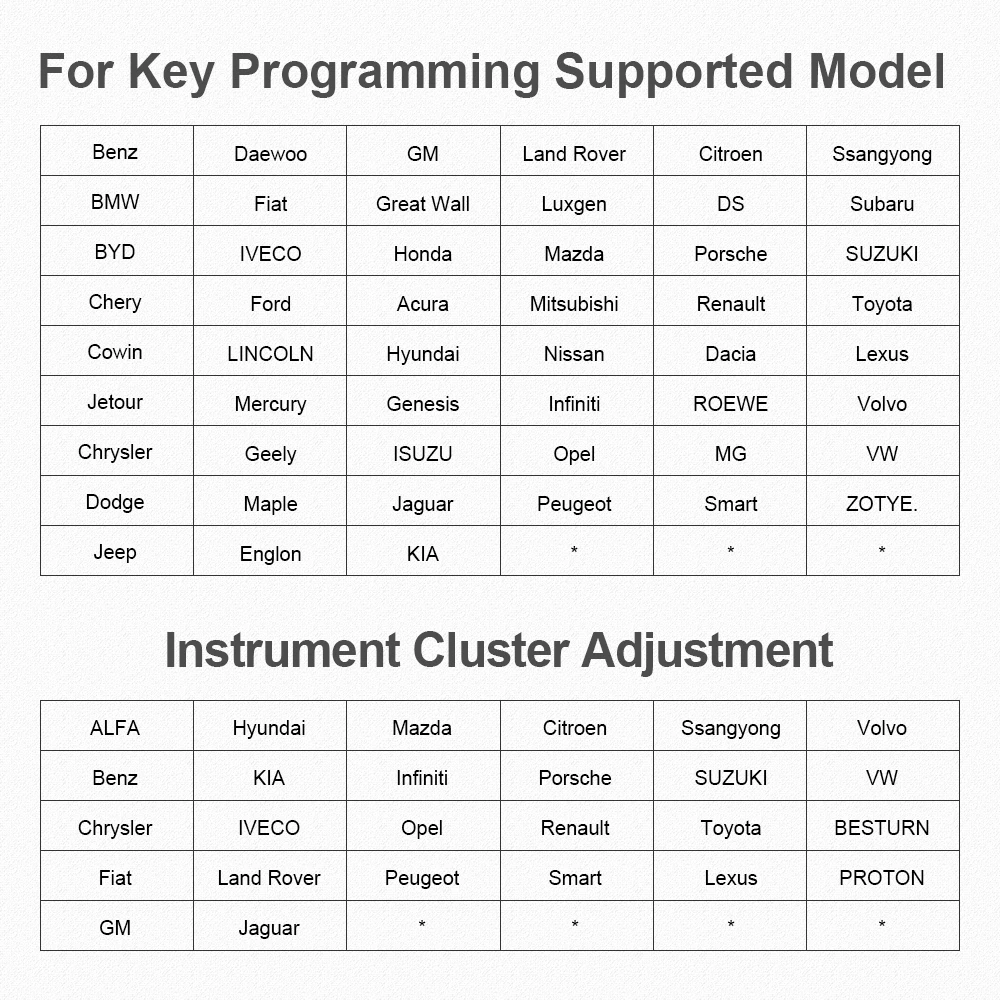

Support Car List

DP500 Support multiple models

For BMW, for PORSCHE, for BENZ, for HONDA/ACURA, for CITROEN/PEUGEOT, for BYD, for GREATWALL, for VW/SEAT/SKODA/AUDI, for FIAT, for TOYOTA, for FORD, for JAGUAR, for GEELY, for CHRYSLER/DODGE/JEEP, for RENAULT, for DACIA, for SUZUKIT , for LANDROVER, for MAZDA, for LUXGEN, for OPEL, for CHERY, for KIA, for NISSAN/INFINITI, for ROEWE, for MITSUBISHI, for SSANGYONG, for SUBARU, for SMART, for GM, for ISUZU, for HYUNDAI, for IVECO, for ZOTYE, for VOLVO, for DAEWOO

For Key Programming

-For Ford EXPLORER/EXPLORER SPORT/TRANSIT CUSTOM/RANGER/FUSION etc supports up to 2019

-For Renault CLIO/CAPTURE/DUSTER/KOLEOS etc supports up to 2015

-For GM EQUINOX/MALIBU/TERRAIN supports to 2020

-For GM CASCADA /ENCLAVE/REGAL/ESCALADE/CAMARO/IMPALA etc supports up to 2019

-For Hyundai ACCENT/ELANTRA SEDAN/G90/GENESIS/KONA/SONATA etc supports up to 2019

-For Landrover DISCOVERY 4/RANGE ROVER/RANGE ROVER EVOQUE supports up to 2015

-For Volvo S60/V40/XC60 supports to 2017

-For MAZDA MAZDA 6/MAZDA CX-3/MAZDA CX-5 etc supports up to 2018

For Instrument Cluster Adjustment

For VWH, for SKODA, for AUDI, for SEAT, for PORSCHE, for BENZ, for FORD, for CHRYSLER, for GM, for HYUNDAI, for INFINITE, for KIA,
for MAZDA, for MITSUBISHI, for NISSAN, for SSANGYONG, for SUBARU, for SUZUKI. for FIAT, for CITROEN, for LANDROVER, for JAGUAR,
for RENAULT, for PROTON, for PEUGEOT, for OPEL, for VOLVO, for SMART, for TOYOTA/LEXUS, for ALFA, for IVECO

-For Chrysler 300C/PACIFICA/CHALLENGER/CHARGER/DURANGO/RAM etc supports up to 2018

-For Ford F250/F350/F450/F550/FIGO/ASPIRE/KA supports up to 2018

-For Renault CAPTUR/CLIO/TRAFIC IV supports up to 2017

-For GM TRAILBLAZER supports up to 2019

-For GM ESCALADE / XTS / COLORADO supports up to 2018

-Support part of ALFA/Porsche mileage correction

Note:

Different car models can do different functions, but not necessarily all of them. If you have specific functions, please send your model year and functions to our customer service, and we will check for you.

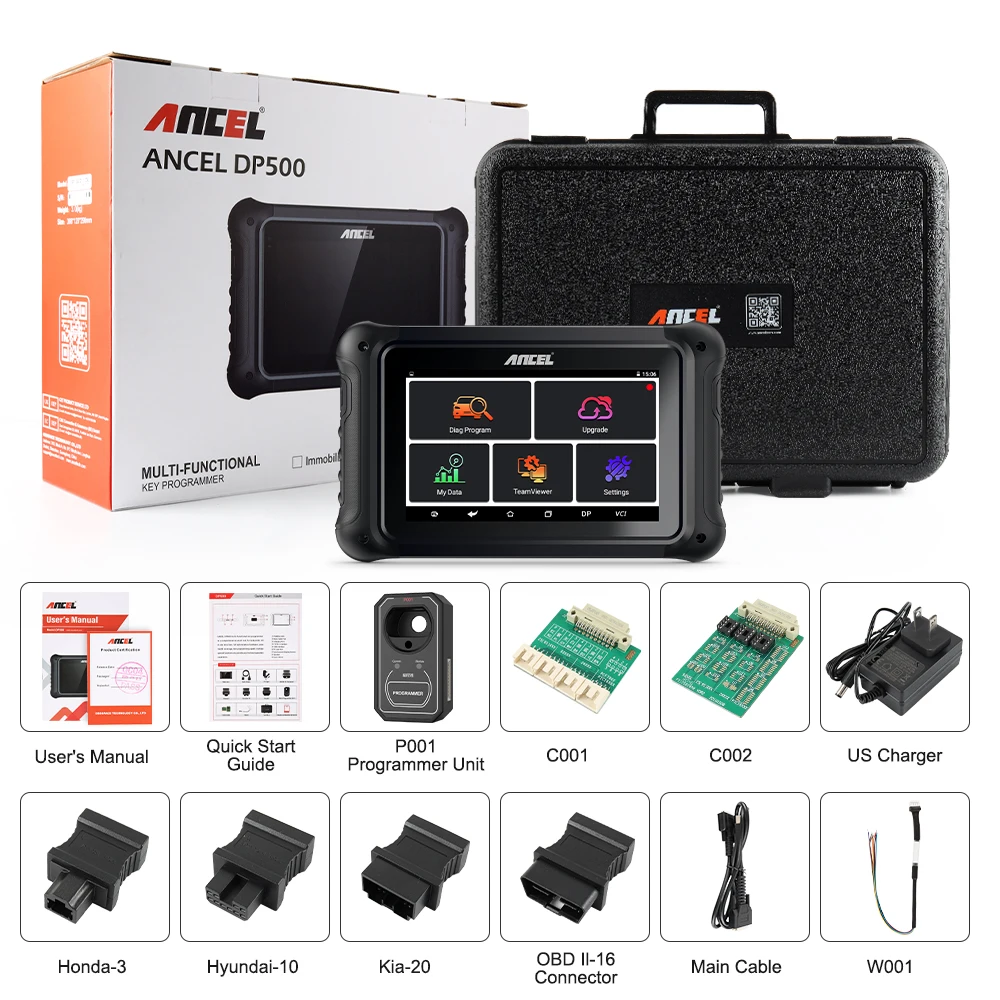

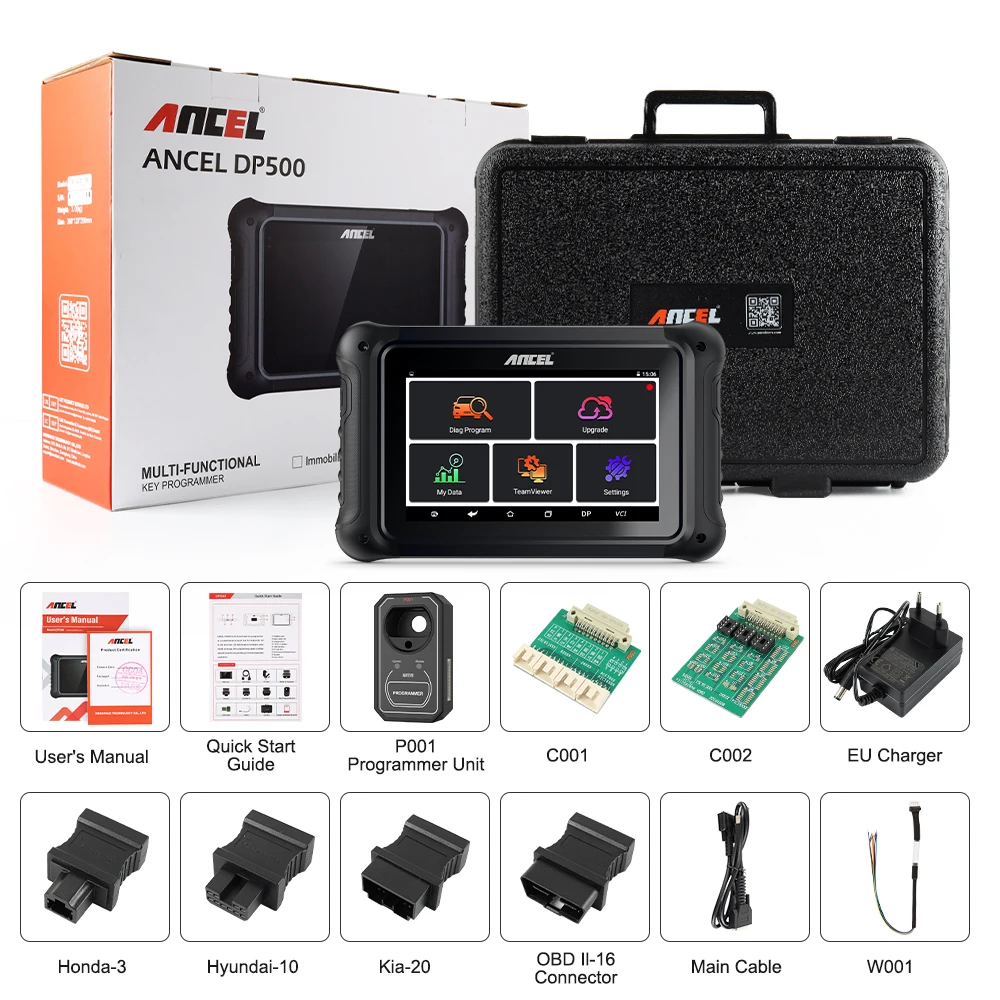

Product Package

US Plug

EU Plug
