Warranty:
NONE
Customized support:
OEM, ODM, OBM
Place of Origin:
Zhejiang, China
Brand Name:
jingxin
Type:
Twist Drill Bit
Use:
Wood Drilling
Finish:
Browned
Material:
HSS
Standard:
DIN 338
Name:
HSS drill bit for steel metal
Usage:
Drilling metal and steel
Diameter:
0.4-16mm

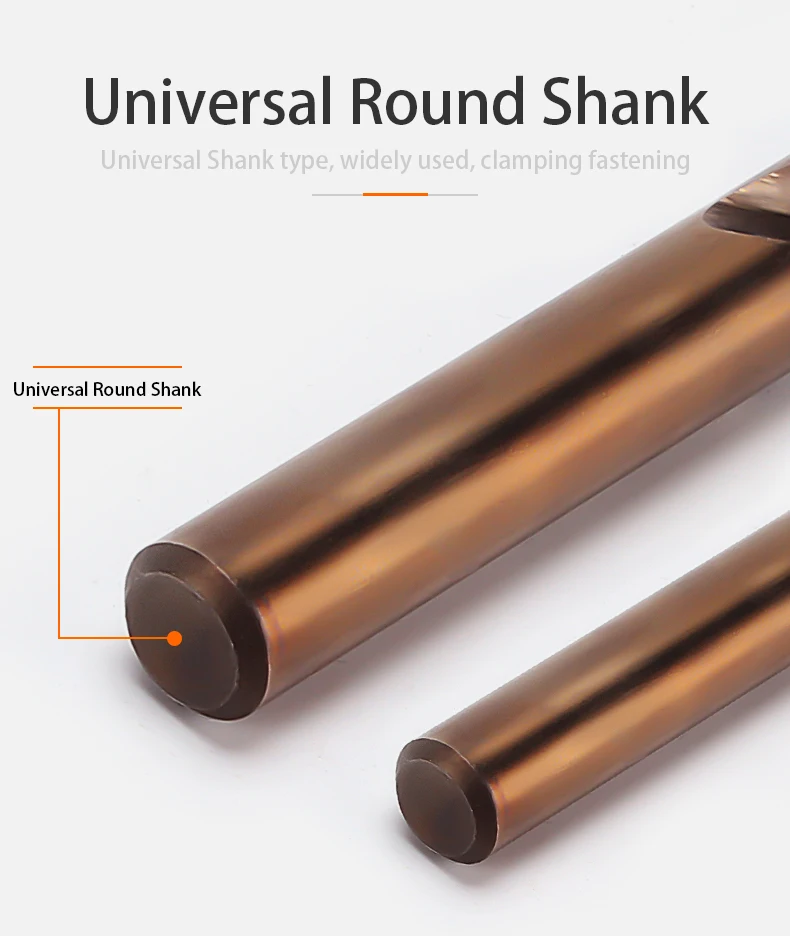

Shank:
Straight shank
Flute:
Single flute
Overall Length:
34-178mm
OEM:
Acceptable
Application:
Solid board,multi-layer Board, MDF, Particle Board, plastic, et
$1.06 - $5.53/ Piece|100 Piece/Pieces(Min. Order)

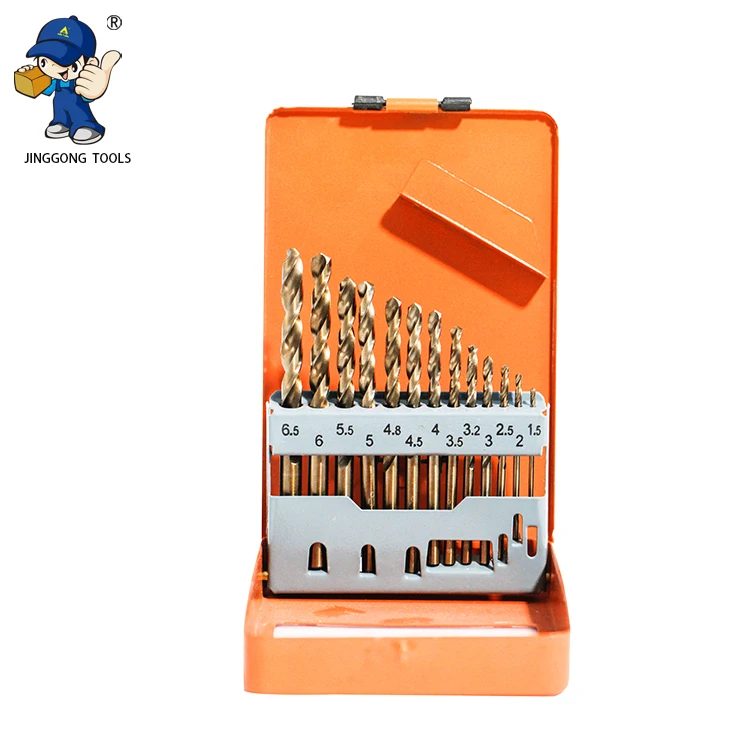

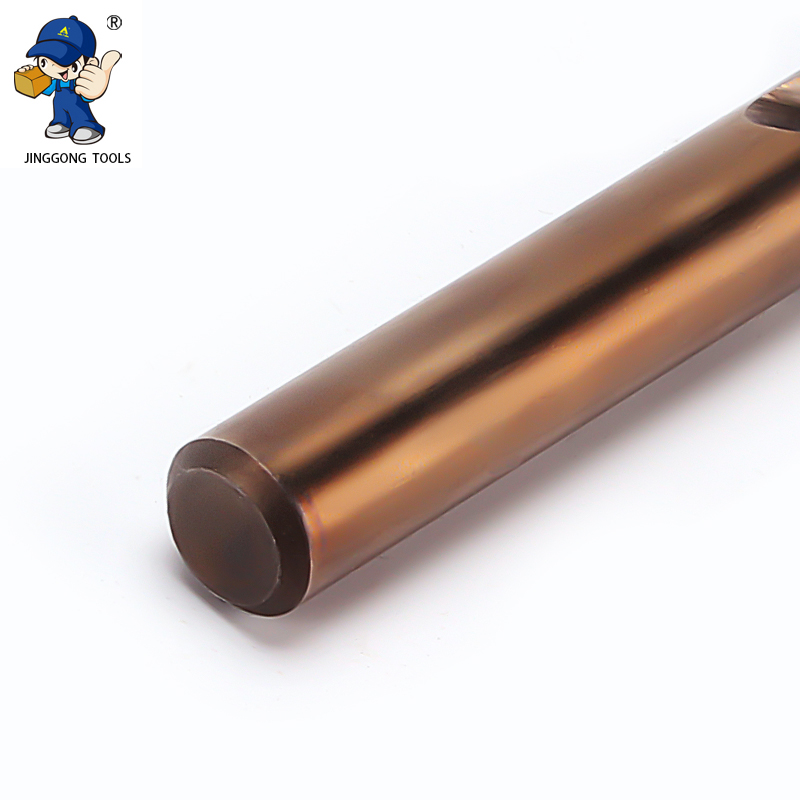

6542 Full grinding twist drill
High hardness, wear resistance, accurate positioning, chip removal, high efficiency. Widely used in stainless steel, die steel, aluminum alloy, cast iron, copper, galvanized pipe and other metal material drilling. Compatible with a variety of machines, suitable for electric drill, lithium electric drill, etc.
|
Diameter |
Working depth |
Total length |
|
0.4mm |
6mm |
22mm |
|
1mm |
12mm |
34mm |
|
1.5mm |
18mm |
40mm |
|
2mm |
24mm |
49mm |
|
2.5mm |
30mm |
57mm |
|
2.8mm |
33mm |
61mm |
|
3mm |
33mm |
61mm |
|
3.2mm |
35mm |
65mm |
|
3.5mm |
39mm |
70mm |
|
4mm |
43mm |
75mm |
|
4.2mm |
43mm |
75mm |
|
4.5mm |
47mm |
80mm |
|
4.8mm |
51mm |
85mm |
|
5mm |
51mm |
85mm |
|
5.2mm |
52mm |
86mm |
|
5.5mm |
57mm |
93mm |
|
6mm |
57mm |
93mm |
|
6.5mm |
63mm |
100mm |
|
6.8mm |
69mm |
109mm |
|
7mm |
69mm |
109mm |
|
7.2mm |
69mm |
109mm |
|
7.5mm |
69mm |
109mm |
|
8mm |
75mm |
117mm |
|
8.5mm |
75mm |
117mm |
|
9mm |
81mm |
125mm |
|
9.5mm |
81mm |
125mm |
|
10mm |
87mm |
133mm |
|
10.5mm |
87mm |
133mm |
|
11mm |
94mm |
142mm |
|
11.5mm |
94mm |
142mm |
|
12mm |
101mm |
151mm |
|
12.5mm |
101mm |
151mm |
|
13mm |
101mm |
151mm |
|
13.5mm |
108mm |
160mm |
|
14mm |
108mm |
160mm |
|
14.5mm |
114mm |
169mm |
|
15mm |
114mm |
169mm |
|
15.5mm |
120mm |
178mm |
|
16mm |
120mm |
178mm |
|
Note: The size of the product is measured by hand, there may be some error please take the actual object as the standard! |
||
